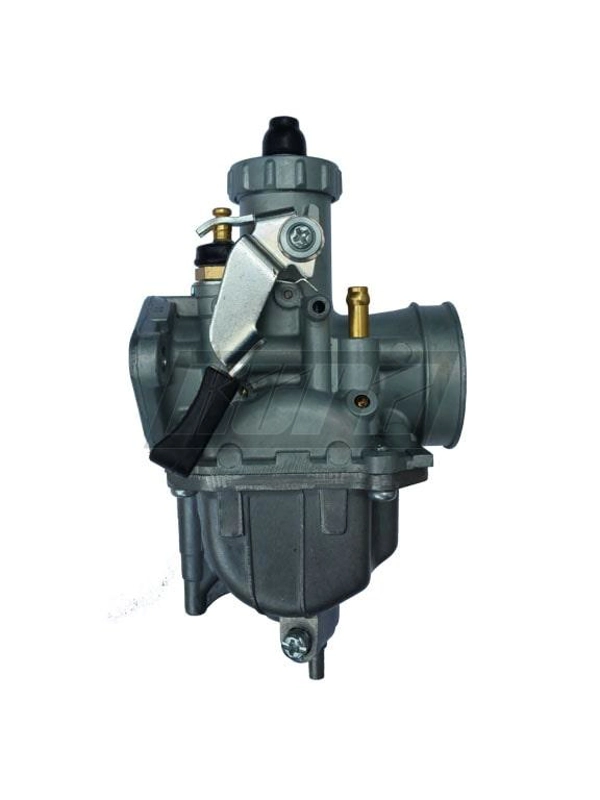

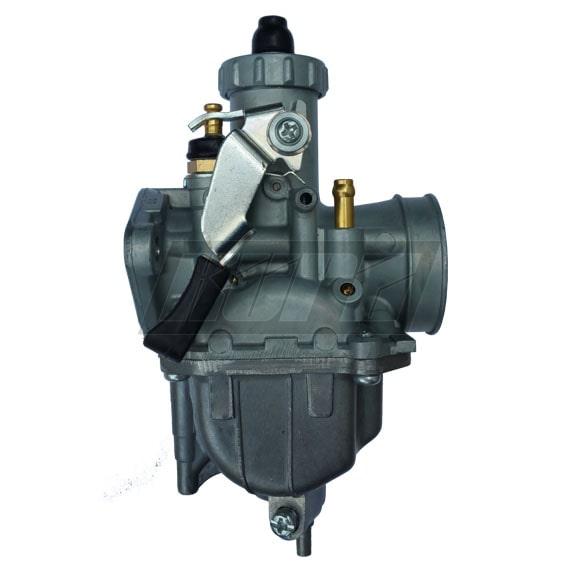

Mikuni VM22 Carb. Suitable for 110cc to 140cc Pit Bike.

Mikuni’s VM Series round slide single carburettors are the most popular high performance single carburettors in the sport of motorcycling.

Mikuni VM Series round slide carburettors include a large selection of bore sizes for increased fuel mixture flow to match engine modifications, A wide range of tuning components are available to allow precise fuel mixture, A great tuning modification by the undisputed leader of carburettors, Designed for any 4 stroke lay flat Honda style engine.

Ideal upgrade for increased power and performance.

2 bolt flange type intake.

Mikuni Part No. – # VM22-3847

Main jet size – 95 (Mikuni type)

Pilot jet size – 15 (Mikuni type)

Throttle valve – VM26/21 2.0

Needle valve – VM26/26 2.0

Hole spacing on the flange to the motor – 48 mm

Inner diameter hole size on the flange to the motor – 26mm

Venturi diameter – 22mm

Please note: Your air filter will need to have a 38-40mm opening.

Tuning info –
Takes Mikuni Jets:
Pilots part # vm28/486
Mains part # n100.60
